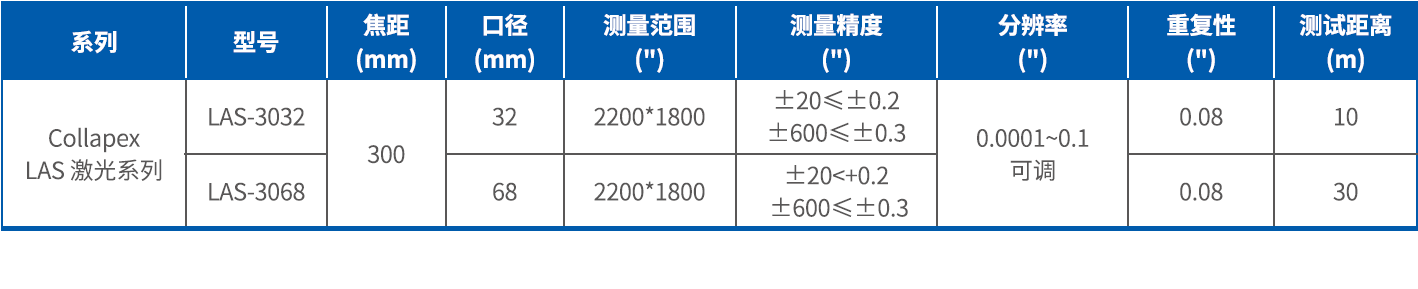

Collapex LAS系列:
Collapex LAS系列高性价比激光自准直仪采用激光作为光源,较多地应用在科研及工业测量中,激光光源可为连续激光、超快脉冲及红外等光波波长。本系列仪器没有测试盲区和伪分辨率问题,可在显示器上能够直接观察光学目标真像,系统采用普通商用笔记本电脑或台式计算机配置。本系列仪器具有测量迅速,不受外界干扰的特点,性价比较高。
型号 Order Number
|
LAS-100
|
LAS-300
|
物镜焦距(Focal Length)
|
100mm
|
300mm(注2)
|
物镜口径(Lens Aperture)
|
20mm(NA>90%)
|
68mm(NA>90%)
|
光源类型(Light Source)
|
高性价比LED半导体光源(Cost-effective LED semiconductor light source)
|
探测器(Sensors)
|
工业级面阵探测器( Industrial-grade panel detector)
|
目镜 (Viewfinder)
|
大视野电子目镜 (Electronic Viewfinder with Software Crosshair)
|
测量范围 (Measuring Range)注1
|
X:2400˝/Y1800˝(arc sec. 角秒)
|
分辨率(Resolution)
|
0.01˝(arc sec)
|
0.01˝(arc sec)
|
精度(Accuracy)
|
±20˝(arc sec. 角秒)
|
±0.5˝(arc sec)
|
±0.3˝(arc sec)
|
±600˝(arc sec. 角秒)
|
±0.8˝(arc sec)
|
±0.5˝(arc sec)
|
重复性 (Repeatability)
|
0.1˝(arc sec)
|
0.1˝(arc sec)
|
重量 (Weight)
|
8KG
|
[1] 超过2米的长距离测量时,测量范围会随距离的增加而相应降低(For longer measuring distance, the measuring range will deducted as the distance increase);
[2] 其它焦距的规格可以定制 (Other focal length specifications can be customized);
|
|
|
