测量类型(Measurement Type)
|

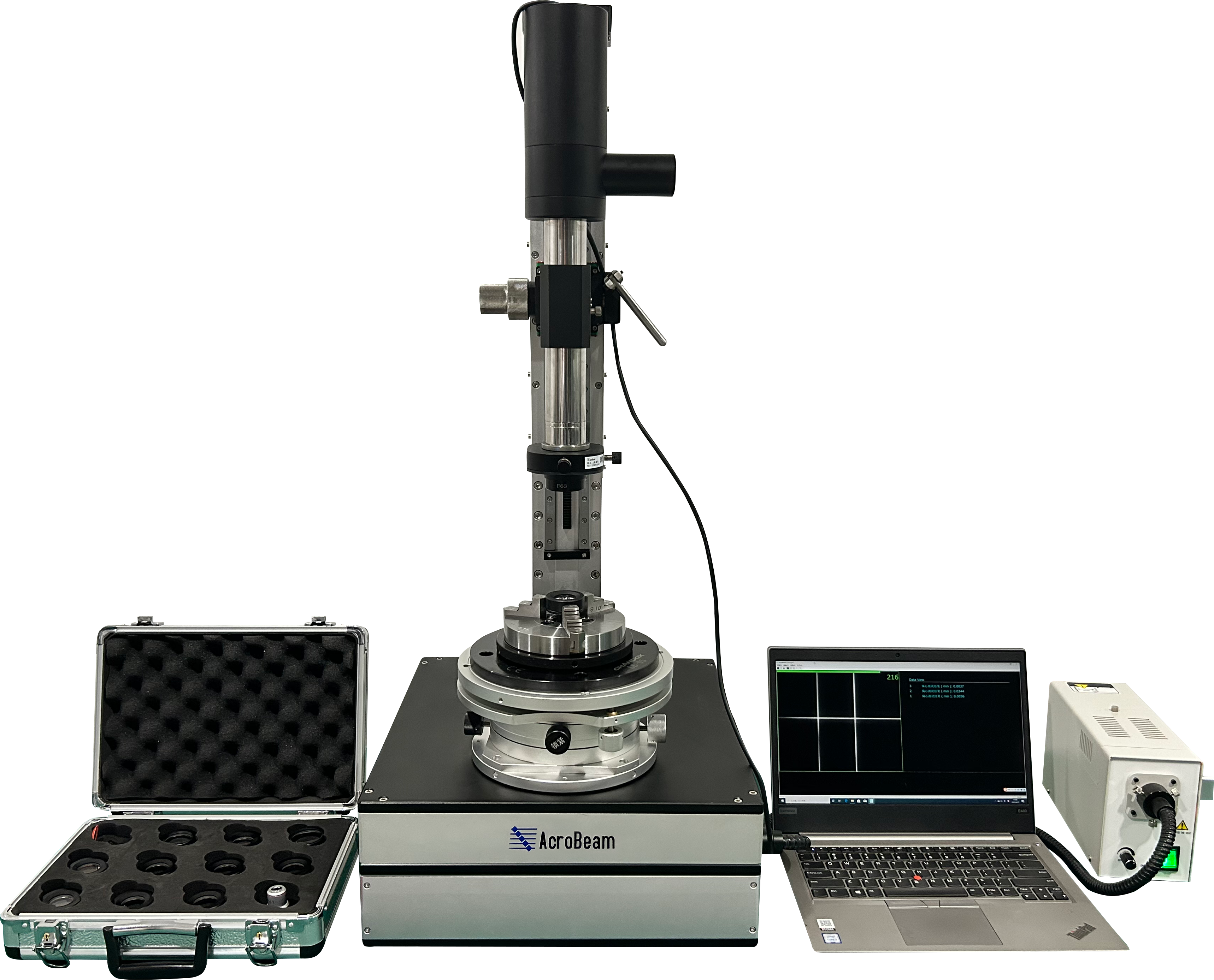

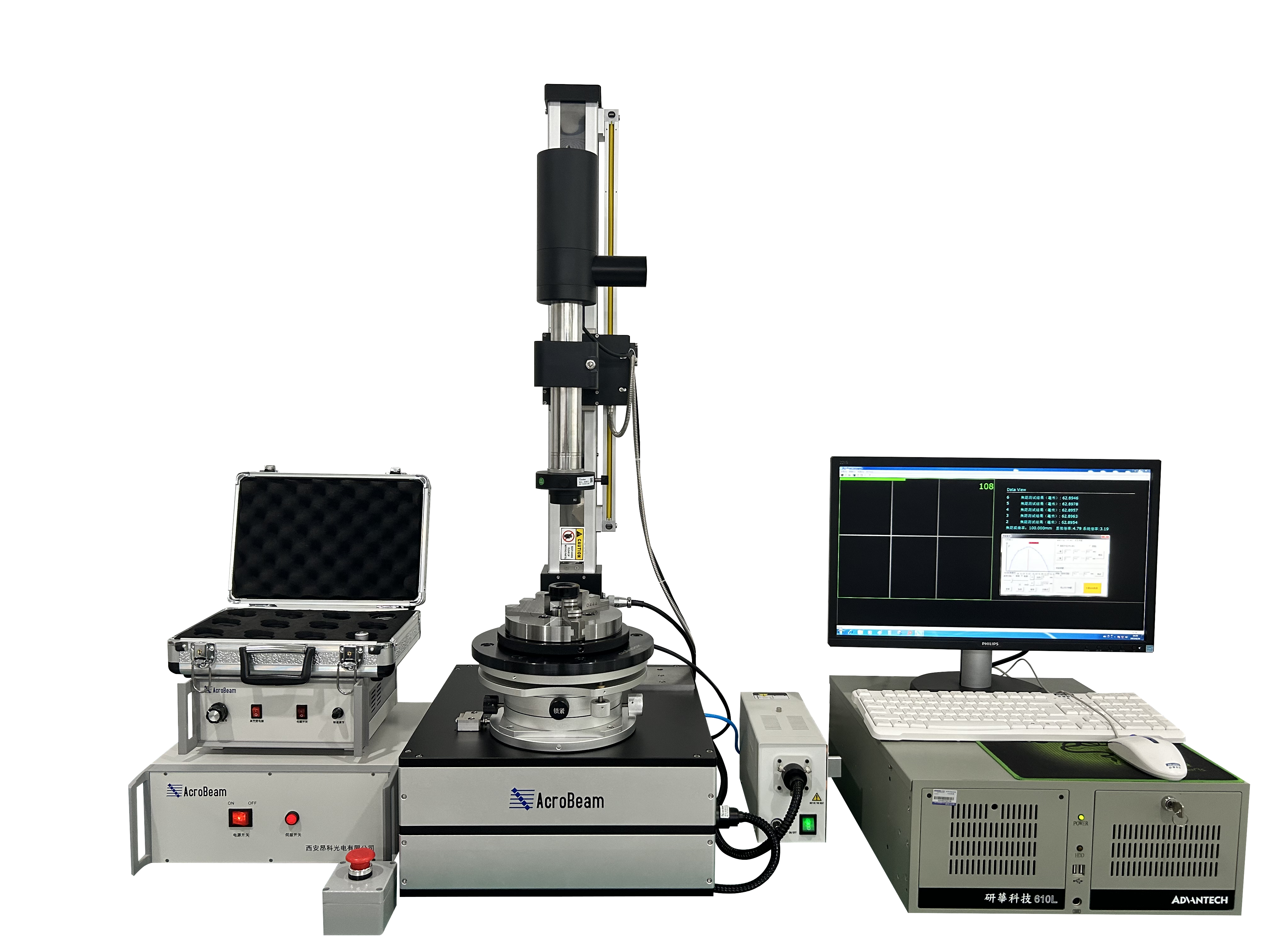

Lensapex CEA
|
|
偏心差
|
焦距（可选）
|
|
被测量镜片直径(Lens diameter is measured)
|
＜100mm
|
|
光源类型（Light Source)
|
高性能冷光源（High Efficient Cold Fibre Light)
|
|
探测器（Sensors)
|
高分辨率面阵探测器（High-Resolution Plane Type Sensors)
|
|
目镜 (Viewfinder)
|
大视野电子目镜 (Electronic Viewfinder with Software Crosshair)
|
|
测量范围 (Measuring Range)
|
±2mm±500mm
|
±3mm±500mm
|
|
分辨率（Resolution)
|
0.01˝(arc sec)
|
|
测量精度（Accuracy)
|
±0.2μm/±2˝(arc sec)
|
0.06%-0.4%
|
|
重复性 (Repeatability)
|
±0.1μm/±1˝(arc sec)
|
|
|
尺寸及重量 (Dimensions / Weight)
|
430mm (L)× 400mm (W)×1000mm (H) / 50KG
|
|
扩展测量(Extended measurement)
|
非球面中心偏(Aspheric center bias)、曲率半径(Radius of curvature)、元件平面度（Components flatness）、透镜厚度(Lens thickness)等
|
|
注：针对特殊要求，可提供定制测试方案 (Different configurations are available upon request);
|
